Neblio Stakebox Instructions






1.  Setup Hardware

In this step you will gather and assemble your pieces.



1.1

Gather Pieces

Before getting started, make sure you have the following:

  • Neblio Stakebox
  • Power Supply (Provided)
  • HDMI Cable (Provided)
  • Keyboard & Mouse
  • Monitor
  • SSD Card*
  • Removeable USB Drive** (Optional)
  • Ethernet Cable (Optional)
  • Pen & Paper

* SSD card required only if you purchased it separately. Otherwise, your stakebox comes with the SSD card installed.
** The USB drive will allow you to store a backup copy of your wallet in a safe location.





2.  Connect to Internet

In this step you will connect to the internet either by ethernet or wifi.



Ethernet

Connect the Stakebox directly to your router with an ethernet cable.

Wifi

Select the icon with two lines and two x's in the top right corner of the desktop. This will provide a dropdown list of available wifi connections. Select the desired wifi connection and provide the password, if required. The icon will change to indicate a successful connection.





3.  Install Wallet

In this step you will run a script that downloads and installs your Neblio wallet.



3.1   Open Install-neblio-qt.sh

Simply double click the file to open. You will then be prompted with an Execute File module asking what you want to do with the script.


3.2   Select Execute in Terminal

execute in terminal.png

3.3   Wait for Script to Finish

The script will download and install the files needed for the Neblio wallet to run. Once all downloads are complete, the window will close on its own. During the process, you will see a new file labeled neblio-qt added to the desktop.

app script.png



4.  Sync Wallet

In this step you will open your Neblio wallet and allow it to sync to the network.



4.1   Open neblio-qt

Simply double click the file to open. You will then be prompted with an Execute File module asking how you want to execute.


4.2   Select Execute


4.3   Wait for Sync to Finish

When the Neblio wallet launches it will begin syncing on its own momentarily. A progress indicator will be visible at the bottom once the process begins.

sync close 2.png



5.  Encrypt Wallet

In this step you will encrypt your wallet with a passphrase of your choosing.



5.1   Write Down a Passphrase

The Neblio wallet requires a passphrase of 10 or more random characters or 8 or more words. Write your chosen passphrase down so you can keep it in a safe place. Wallets do not have a "forgot my password" feature.

5.2  Select Settings > Encrypt Wallet

encrypt 1.png

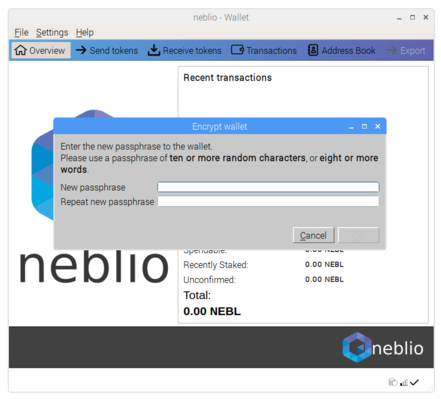

5.3   Enter Passphrase

Enter your passphrase twice in the Encrypt wallet module.

encrypt 2.png

5.4   Select Yes

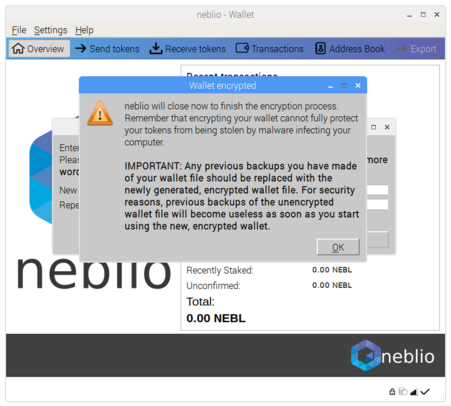

5.5   Select OK

When you select 'OK' the wallet will close.





6.  Unlock Wallet

In this step you will unlock your wallet so staking can occur.



6.1   Open neblio-qt

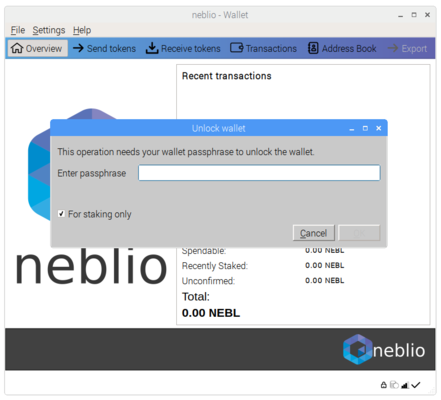

6.2   Select Settings > Unlock Wallet

unlock wallet.png

6.3   Enter Passphrase





7.  Backup Wallet

In this step you will backup your wallet as a safety precaution.



7.1   Select File > Backup Wallet

7.2   Enter Name & Select Save

7.3   Insert USB Drive

7.4   Select OK

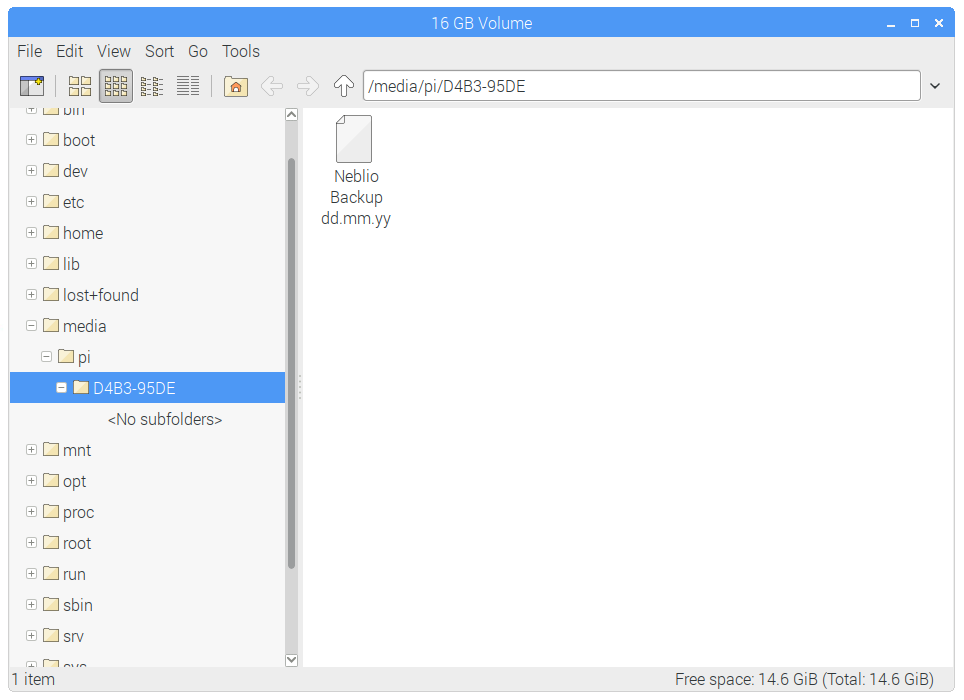

7.5   Add file to USB Drive

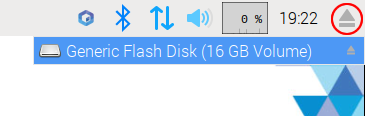

7.6   Eject USB Drive





8.  Setup Auto Start

In this step you will turn on auto start which allows the wallet to unlock automatically upon startup.



8.1   Select Settings > Options


8.2   Check Start Neblio on System Login

start neblio.png

8.3   Select Apply





9.  Add Neblio to Wallet

In this step you will add Neblio to your wallet by sending it to a wallet address.



9.1   Select Receive Tokens

9.2   Select Address

9.3   Select Copy Address

9.4
